새로워진 MFX 2200 Series는 다수의 사용자를 위한 장비로 기존장비보다 Airflow 량을 50%개선하였으며, HEPA Filter Size를 3배 증가 또한 Carbon GAS Filter용량을 6배 증가시킨 장비입니다.
Airflow 최대수용
HEPA Filter 정화능력 99.97% at 0.3 micron
필터용량증가
장비의 수명이 길다
100mm 흡입구로 교체하여 많은 사용가능
AC2204
  Top cover with 2 Air inlets 100mm and 2 Air inlets 63mm
  MFX-2206C-A(analog)
MFX-2206C-D(digital) 		MFX-2206G-A(analog)
MFX-2206G-D(digital)
Air inlet openings 4 x 63 mm 2 x 100mm & 2 x 63mm
Fan capacity 900 ㎥/h 900 ㎥/h
Flow rate 600 ㎥/h 550㎥/h
Max. static pressure

1074 Pa

 1075 Pa
HEPA efficiency H12(DIN EN 1822)
Power supply 220~240 VAC. 50Hz 220~240VAC. 50Hz
Power 400 Watt 400 Watt
Noise level approx. 60 dBA 60dBA
Dimension(W/D/H) 450 x 525 x 670 mm 450 x 525 x 710 mm
Weight approx. 43 kg 52 kg
Certification CE CE
Connection capacity
Omniflex arms 63mm 4
BVX-arms 50mm 8

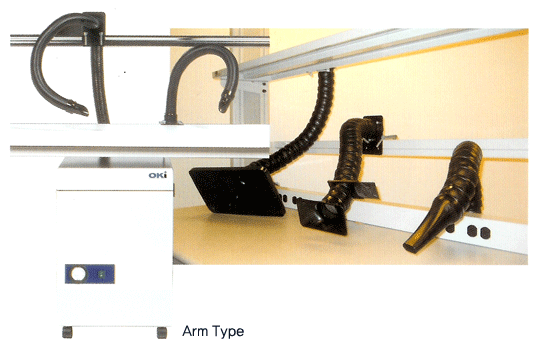

Exhaust Arms, Nozzles and Cabinets
Exhaust Arms Arm Diameter
mm 		Length
cm 		Nozzle Sizes and Styles Estimated Airflow
㎥ /h 		Application
BVX-Arm 50 mm 71 mm
Round : 40mm
75 ㎥ /h Point and small area extraction for
-Sldering
-Gluing/bonding
-Laser marking fumes
BVX-Arm 50 mm 122 mm
Omniflex Arm
EA1122		 63 mm 60 cm
Rectangular : 150x88mm
140 ㎥ /h
85cfm 		Area extraction for
-Soldering
-Gluing/bonding
-Solder pots
-solvent vapors
Omniflex Arm
EA1126		 63 mm 60 cm
Large rectagular hood : 350x212mm
140 ㎥ /h
85cfm 		Large area extraction for :
-Soldering of large bords
-Largesolder pots
-Gluing /bonding
-solvent vapors
Omniflex Arm
EA1124		 63mm 60 cm
Oval : 30mm
50㎥ /h
30cfm 		Point extraction for:
-Soldering under microscope
-Laser markingfumes
Exhaust Cabinet
EC1500 		100 mm port N/A
760W x 560mm(H)
250 ㎥ /h
150cfm 		-Volatile gases
-Toxic gases
- Odors
