신형코일의 적용으로 성능및 수명을 향상한 신제품 |
|
|
인두기의 크기가 컴팩트하여 설치가 용이 |
|
|
파워팁의 직경이 8mm로 중대형 보드에 적합 |
|
|
온도 Check및 온도관리 불필요 |
|
 |
|
|
|
중저가 제품 양산용 |
|
|
중대형 부품 납땜용 (Heatsinks, Ground Planes, 다층기판) |
|
|
DVDP, STB, HDTV, PDP, 모니터, 냉장고 세탁기 전자렌지, 디지털 카메라,
AS센터 수리용, |
| |
중계기용 RF모듈, HPA, LPA, Isolator, Filter 외 |
|
| |
|
|
|
|
Power
Supply |
|
|
|
|
|
Ambient
Operating Temperature |
10-40℃ |
|
Maximum Enclosure
Temperature |
65℃ |
|
Input Line Voltage |
90 - 260VAC |
|
Input Line Frequency |
50/60 Hz |
|
Power Consumption |
35W |
|
Output Power |
35W (세라믹인두기 기준 90W) |
|
Output Frequency |
470KHz |
|
Power Cord (3-wire) |
1.83 cm 18/3 SJT |
|
Dimensions (approx.) |
W : 70mm, D : 161mm, H :
100mm |
|
|
|
|
Soldering
Handle w/Coil |
|
|
|
|
|
Tip-to-Ground
Potential |
<2mV True RMS, 50-500 Hz |
|
Tip-to-Ground Resistance |
<2ohms DC, unit on |
|
Idle Temperature Satability |
1.1C in still air |
|
Weight |
55g |
|
Handle Cord Assembly
Lenght |
128cm - carbon loaded silicone |
|
Connector |
3-pin power connector |
|
Dimensions (approx.) |
|
|
Overall length (with
tip) |
214mm with standard tips |
|
Grip diameter |
13mm |
|
Tip to grip |
58mm |
|
Tip shaft diameter |
5.5mm |
|
Tip length |
52mm (typical) |
|
|
|
|
Work-Stand |
|
|
|
|
|
Dimensions |
W : 101mm, D : 173mm, H
: 76mm |
|
|
|
|
|
|
|
PS-PW1 |
PS-800E Power Supply |
|
PS-WSK1 |
PS-800E Work stand with
Sponge |
|
PS-WSC1 |
PS-800E Credle |
|
AC-YS4 |
Sponge 79.2mm ￠X 25.4mm |
|
PS-HC1 |
PS-800E Soldering Handle |
|
AC-CA2 |
Cartridge Removal Pad |
|
AC-PM |
Power Meter-AC |
|

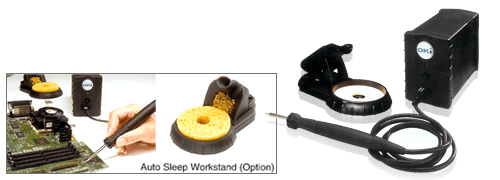

PS-WSAS |
Auto Sleep Workstand |
|
|
|
|
 |
|
|
|
|
|
|
|
|
 |
|
