´ëÇü ºÎÇ° ³³‹ª¿ë (Heatsinks, Ground Planes,
´ÙÃþ±âÆÇ) |
|
|
ÀÚµ¿Â÷¿ë ECU, TCU, Navigation, Control Unit, HDTV,
PDP¿Ü |
|
|
|
|
|
|
Power
Supply |
|
|
|
|
|
Ambient
Operating Temperature |
10-40¡É |
|
Maximum Enclosure
Temperature |
65¡É |
|
Input Line Voltage |
100 - 240VAC |
|
Input Line Frequency |
50/60 Hz |
|
Power Consumption |
65W max |
|
Output Power |
50W max |
|
Output Frequency |
470KHz |
|
Power Cord (3-wire) |
1.83 cm 18/3 SJT |
|
Dimensions (approx.) |
W : 122mm, D : 200mm, H
: 152.5mm |
|
|
|
|
Soldering
Handle w/Coil |
|
|
|
|
|
Tip-to-Ground
Potential |
<2mV True RMS, 50-500 Hz |
|
Tip-to-Ground Resistance |
<2ohms DC, unit on |
|
Idle Temperature Satability |
1.1C in still air |
|
Weight |
55g |
|
Handle Cord Assembly
Lenght |
128cm - carbon loaded silicone |
|
Connector |
3-pin power connector |
|
Dimensions (approx.) |
|
|
Overall length (with
tip) |
214mm with standard tips |
|
Grip diameter |
13mm |
|
Tip to grip |
58mm |
|
Tip shaft diameter |
5.5mm |
|
Tip length |
52mm (typical) |
|
|
|
|
Work-Stand |
|
|
|
|
|
Dimensions |
W : 100mm, D : 200mm, H
: 100mm |
|
|
|
|
|
|
|

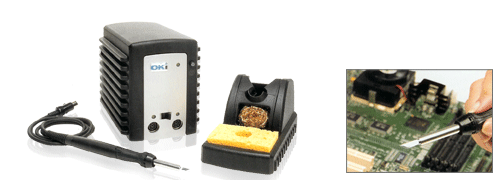

MFR-PS1K |
Tow port Universal Voltage |
|
|
Power Supply |
|
MFR-HPS |
Production Soldering Hand-piese |
|
MFR-CA1 |
Coil Assembly |
|
MFR-WSSR |
Solering Workstand |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
