프리볼트 (100~240 VAC)
Auto Off
ESD safe
Motion Detection 기능으로 미사용시 Tip 수명 증가
접지상태 확인 기능으로 민감한 부품의 손상방지

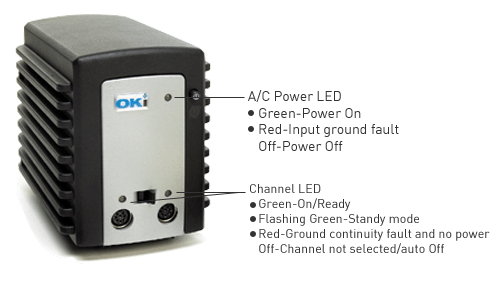

본체 LED를 통해 접지 상태, 전원, 대기 모드
핸들의 불량상태 체크가능
MFR-SRC, MFR-PTZ, MFR-STZ
Ambient operating temperature
10~40℃
Maximum enclosure temperature
55℃
Input line voltage
100~240 VAC
Input line frequency
50~60 Hz
Power consumption
65 Watts max.
Output power
50 Watts max.
Output frequency
470KHz
Power code(3-wire)
183cm
Power supply dimension
W122×D200×H152.5mm
Agency tested per
IEC61000-6-1,EC61000-6-3 & UL499,FCC CFR Part15
Tip-to-ground potential
2mV
Tip-to-ground resistance
2ohms
Idle tip temperature stability
1.1℃ In still air
Hand-piece cable length
L : 710mm burn proof, ESD safe
Hand-piece cable connector
8-pin power connector
Workstand supply dimension
W100×D200×H100mm
MFR-SDX
Ambient operating temperature
10~40℃
Maximum enclosure temperature
55℃
Input line voltage
100~240 VAC
Input line frequency
50~60 Hz
Power consumption
90 Watts max.
Output power
50 Watts max.
Output frequency
470KHz
Power code(3-wire)
183cm
Power supply dimension
W170×D200×H152.5mm
Agency tested per
IEC61000-2-45 & UL499, FCC CFR Part 15
Tip-to-ground potential
2mV
Tip-to-ground resistance
2ohms
Idle tip temperature stability
1.1℃ In still air
Hand-piece cable length
L : 710mm burn proof, ESD safe
Hand-piece cable connector
8-pin power connector
Workstand supply dimension
W100×D200×H100mm
Recommended air pressure input
450kPa
Noise level
Less than 70dBA
