열전도성이 뛰어나 모든 납땜 제거 가능
효과적인 파워공급으로 부품과 PCB 를 보호

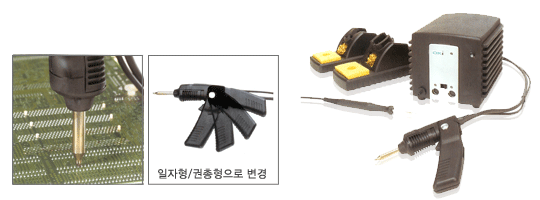

작업용도에 따라 일자형이나 권총형으로 변경가능
Paper chamber, filters 유지비용 절감
컴퓨터, 가전, 메인보드, 각종 디지털 송수신기, Dip-IC 제거용

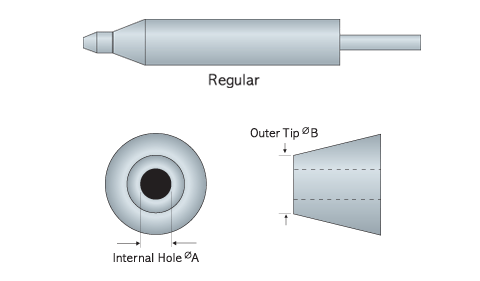

Part No. Description Φ A mm Φ B mm
DFP-CN2 Desolder Tip 0.6 1.8
DFP-CN2 Desolder Tip 0.8 2.0
DFP-CN2 Desolder Tip 1.0 2.3
DFP-CN2 Desolder Tip 1.3 2.6
DFP-CN2 Desolder Tip 1.5 2.8
DFP-CN2 Desolder Tip 2.4 3.6

Ambient operating temperature 10~40℃
Maximum enclosure temperature 55℃
Input line voltage 100~240 VAC
Input line frequency 50~60 Hz
Power consumption 90 Watts max.
Output power 50 Watts max.
Output frequency 470KHz
Power code(3-wire) 183cm
Power supply dimension W170×D200×H152.5mm
Agency tested per IEC61000-2-45 & UL499, FCC CFR Part 15
Tip-to-ground potential 2mV
Tip-to-ground resistance 2ohms
Idle tip temperature stability 1.1℃ In still air
Hand-piece cable length L : 710mm burn proof, ESD safe
Hand-piece cable connector 8-pin power connector
Workstand supply dimension W100×D200×H100mm
Recommended air pressure input 450kPa
Noise level Less than 70dBA
Accessories
MFR-PS2X Two port universal voltage power supply terminal air
MFR-HSR Soldering and rework hand-piece
MFR-WSSR Soldering workstand
MFR-HDS Desoldering hand-piece
MFR-WSDS Desoldering workstand
