³³¶« ¹× ¼ÒÇüĨ Á¦°Å¿ë (1005, 0603 Packages)
ÀÎü°øÇÐÀûÀÎ µðÀÚÀÎÀ¸·Î ¹«°Ô°¡ °¡º±°í ÀÛ¾÷¿ëÀÌ
Tip °£°ÝÀ» 2´Ü°è·Î Á¶Àý °¡´ÉÇÏ¸ç ¹Ýº¹ ÀÛ¾÷¿ëÀÌ
Á¢Áö üũ±â´ÉÀ¸·Î ºÎÇ°À» ¾ÈÀüÇÏ°Ô º¸È£
3Ãà Tip Á¶Àý±â´ÉÀ¸·Î ¹Ì¼¼ÀÛ¾÷¿¡ Æí¸® (ƯÇãÃâ¿øÁß)
ÈÞ´ëÆùÀ» ºñ·ÔÇÑ ¼ÒÇü Á¤¹ÐºÎÇ° ÀÛ¾÷¿¡ Æí¸®
Ambient operating temperature 10~40¡É
Maximum enclosure temperature 55¡É
Input line voltage 100~240 VAC
Input line frequency 50~60 Hz
Power consumption 65 Watts max.
Output power 50 Watts max.
Output frequency 470KHz
Power code(3-wire) 183cm
Power supply dimension W122¡¿D200¡¿H152.5mm
Agency tested per IEC61000-6-1,EC61000-6-3 & UL499,FCC CFR Part15
Tip-to-ground potential 2mV
Tip-to-ground resistance 2ohms
Idle tip temperature stability 1.1¡É In still air
Hand-piece cable length L : 710mm burn proof, ESD safe
Hand-piece cable connector 8-pin power connector
Workstand supply dimension W100¡¿D200¡¿H100mm

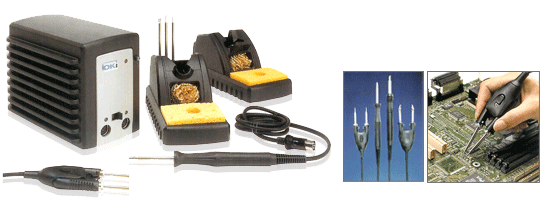

Accessories
MFR-PS1K Two Port universal voltage power supply
MFR-HPT Precision Tweezer hand-piece
MFR-WSPT Tweezer workstand
MFR-HSR Cartridge Solder and rework hand-piece
MFR-WSSR Soldering workstand
