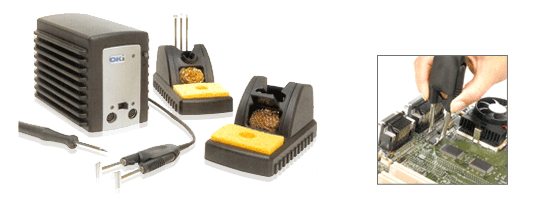

납땜 및 SMD 부품 제거장비 (SO Type)
인체공학적인 디자인으로 무게가 가볍고 작업용이
접지 체크기능으로 부품을 안전하게 보호
소형 SMD부품(SOIC, SOJ 등) 제거 및 수리용
Ambient operating temperature 10~40℃
Maximum enclosure temperature 55℃
Input line voltage 100~240 VAC
Input line frequency 50~60 Hz
Power consumption 65 Watts max.
Output power 50 Watts max.
Output frequency 470KHz
Power code(3-wire) 183cm
Power supply dimension W122×D200×H152.5mm
Agency tested per IEC61000-6-1,EC61000-6-3 & UL499,FCC CFR Part15
Tip-to-ground potential 2mV
Tip-to-ground resistance 2ohms
Idle tip temperature stability 1.1℃ In still air
Hand-piece cable length L : 710mm burn proof, ESD safe
Hand-piece cable connector 8-pin power connector
Workstand supply dimension W100×D200×H100mm
Accessories
MFR-PS1K Two Port universal voltage power supply
MFR-HSR Soldering and rework hand-piece
MFR-WSSR Soldering workstand
MFR-HST Standard tweezer hand-piece
MFR-WSPT Tweezer workstand
